MMDS Rx antennas

MMDS converter with integrated filter and dipole

The antennas are designed for the reception of analogue or digitally modulated MMDS programmes. They have a built-in highly selective filter on the input, therefore they are highly resistant to interference, in particular in areas with strong signals from GSM or UMTS mobile networks, or from airport radars. The "21Y" antenna is certified.

Chatacteristic data for integrated down converter RF frequency (GHz) 2,2...2,3  or  2,5...2,69 IF frequency (MHz) 150...860 according L.O. Gain of downconverter  32 or 37 dB L.O. frequency (MHz) 1 838 MHz standard 1300...2900(according to requirements +20%) L.O. Phase noise  95 dBc/Hz@10kHz                              L.O. frequency stability ±25 kHz  / - 40°C...+ 70°C L.O. leakage to IF port 60 dBµ typ. L.O. leakage to RF port 40 dBµ typ. Noise figure 2,5 dB typ. Gain flatness ±2 dB  (applies to all band) Rejection UMTS >45 dB  / 2 170 MHz = UMTS) Gain of Yagi antenna 13 dB Operation temperature -30...+50°C Output impedance 75 Ω Supply voltage / current +12....+ 24V / 150 mA Output connector F Dimension  (mm) 620 x 140 x 140 .........type 21Y Prices : 99,9 € ...21Y  with super selective filter 39,0 €  ...21Y without selective filter

Antenna RX Yagi with integr. down converter - CERTIFIED    type 21Y   G of antenna = 13 dB

MMDS Parabolic antenna suitable for remote (DX) reception

These parabolic antennas are designed for remote reception MMDS, because they have a separate antenna and a separate converter. The antenna is used as a source log-periodic broadband antenna, and reflector with three possible sizes.

Basic data	reflector 20 x 40 cm	reflector 42 x 51 cm	reflector 63 x 74 cm
Working band	2,1...2,7 GHz	2,1...2,7 GHz	2,1...2,7 GHz
Gain    (with radiator LPZ-1 or LPZ-2)	12 dB	17 dB	22 dB
Beam Pattern V / H (3 dB)	20°/25°	15°/19°	10°/14°
Ratio Cross-Pol.	19 dB	31 dB	30 dB
Ratio Back to Font	20 dB	23 dB	30dB
Impedance	50 Ω
Weight  (with UC-2V)	1,7 kg	2,3 kg	3,8 kg
Connectors	N alebo F
Type	R20-30	R42-51	R65-78
Price of reflectors	11,5 €	17,5 €	19,9 €
Price LPZ-1 (connectors N or F)	15,6 €
Price LPZ-2 (connectors N or F)	21,9 €
Price UC-1	4,8 €
Price UC-2	9,9 €

	LPZ-1	UC-1
	LPZ-2	UC-2

Reflector 65 x 78 cm

Radiators log. periodic

Brackets

Panel MMDS antennas

These antennas are designed for MMDS reception, with a medium level but are easy on space and homogeneity el-mag. field of the received signal. Antennas can also be used as broadcast. They are supplied with brackets.

Basic data	23 x 24	11 x 12
Working band	2,1...2,7 GHz	2,1...2,7 GHz
Gain	15 dB	9 dB
Beam Pattern V / H (3 dB)	30°/30°	75°/75°
Ratio Cross-Pol.	25 dB	21 dB
Ratio Back to Font	30 dB	23 dB
Impedance	50 Ω
Connectors	N
Dimension (mm)	230 x 240 x 30	110 x 120 x 23
Weight	0,7 kg   (1,2kg with brackets)	0,3 kg >  (0,8kg with bracket)
Type	PA -15	PA -9
Price	31,5 €	19,5 €

Panel MMDS antenna 15 dB

Panel MMDS antenna 9 dB

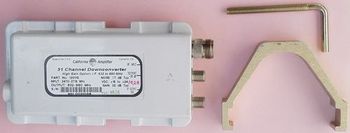

Separate converter MMDS

This converter is designed for use with remote or printed antennas. It have built-in a very selective filter input and is therefore very resistant to interference UMTS and airport radar.

Basic data for separate converter Input frequency (GHz) 2,1...2,3 or  2,5...2,7 Output frequency (MHz) 150...860 according to L.O. Gain  32 dB or 37 dB L.O. frekvency (MHz) 1 838 MHz standard 1300...2900(according to requirements +20%) Phase noise 90 dBc/Hz@10 kHz                           110 dBc/Hz@10 kHz Option L.O. frequency stability ±25 kHz  /  - 40°C...+ 70°C L.O. leakage to IF port 55 dBµ typ. L.O. leakage to RF port 35 dBµ typ. Noise figure 1,8 dB typ. Gain flatness ±2 dB  applies to all band Rejection UMTS >45 dB  by  2 170 MHz = UMTS) Operation temperature -30...+50°C In-out impedancy 50 Ω or 75 Ω Power +12....+ 24V / 150 mA In-out connectors  F/F                                                        N in - F out = option + 30% Dimension (mm) 127 x 88 x 59 Type SK-32 and SKSU-32   Price 69,8 € ; SKSU-32...94,9€

Separate converter SK-32

Separate converter SKSU-32
