S-Band power amplifier
13 cm power amplifier
GaAs FET power amplifier for S-Band ..............1,3W a 10W
Amplifiers are highly
linear (GaAs
FET operation in class A) suitable for all kinds of digital and analog
modulation. They have control the transmitted output power,
over
and reverse polarity voltage protection
measure indoor temperature (° C output for models over 10W), single DC supply 11... 15V DC.
measure indoor temperature (° C output for models over 10W), single DC supply 11... 15V DC.
| Characteristic data | power amplifier s-band 2-3GHz | |
| Gain | 27 dB (37dB ) | 22 dB (11dB; 32dB) |
| Output power (CW) | 1,2W | 10W |
| DC voltage / current | 12V / 350mA | 12V / 1,5A |
| Impedance | 50 Ω | |
| Connectors | SMA, (N) | |
| Type | POAM-2,3/2,5J27 | POAM-2,1/2,7D22 |
| Dimension of case (mm) | 70 x 41 x 21 | 90 x 50 x 25 |
| Material of case | tinplate | milled aluminium |
| Price | 99,00 € | on request |
 |
 |

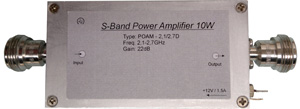

| Power amplifier 1,2W / 2,3-2,5GHz 27dB | Power amplifier 10W / 2,1-2,7GHz 22dB |
GaAs FET power amplifier for S-Band and 13 cm Band ..............30W a 60W
Amplifiers are highly
linear (GaAs FET operation in class A) suitable
for all kinds of digital and analog modulation. They have control the
transmitted output power, over and reverse polarity voltage
protection,
measure indoor temperature ° C output, single DC supply 11... 13V DC, and over temperature protection.
measure indoor temperature ° C output, single DC supply 11... 13V DC, and over temperature protection.
| Characteristic data | power amplifier s-band 2-3GHz | |
| Gain | 12 dB (22dB) | 22 dB (11dB) |
| Putput power (CW) | 30W | 60W |
| DC voltage / current | 12V / 6,5A | 12V / 13A |
| Impedance | 50 Ω | |
| Connectors | SMA, (N) | |
| Type | POAM-2,3/2,4T12 | POAM-2,1/2,3S32 |
| Dimension of case (mm) | 140 x 70 x 25 | 210 x 70 x 25 |
| Material of case | milled aluminium | |
| Price | on request | |
 |
 |

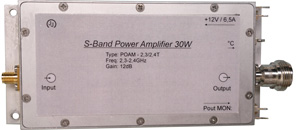

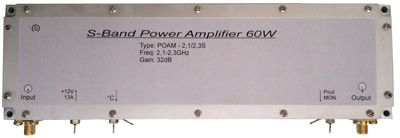

| Power amplifier 30W 2,3-2,4GHz 12dB | Power amplifier 60W 2,1-2,3GHz 22dB |
