Tracking generator for HM 8028 - 3...500MHz

Tracking generator for HM 8028 3...500MHz

Characteristic data:

Frequency range: .....................................................  3...500MHz
Output level: ..............................................................  -23 dBm ± 0,5dB
Impedance:................................................................  50Ω
Flatnes:.......................................................................  ± 0,5dB
Attenuator: .................................................................  0...30dB continuously
Spurious signoff: .....................................................  > 30 dB
Dimension: ..............................................................  210 x 70 x 180mm
Price: 299,00 €

We can customize tracking generatos to various spectrum analysers.

---

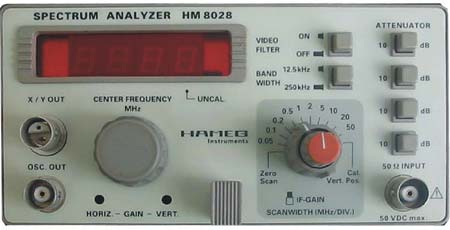

Spectrum analyzer HAMEG HM 8028
